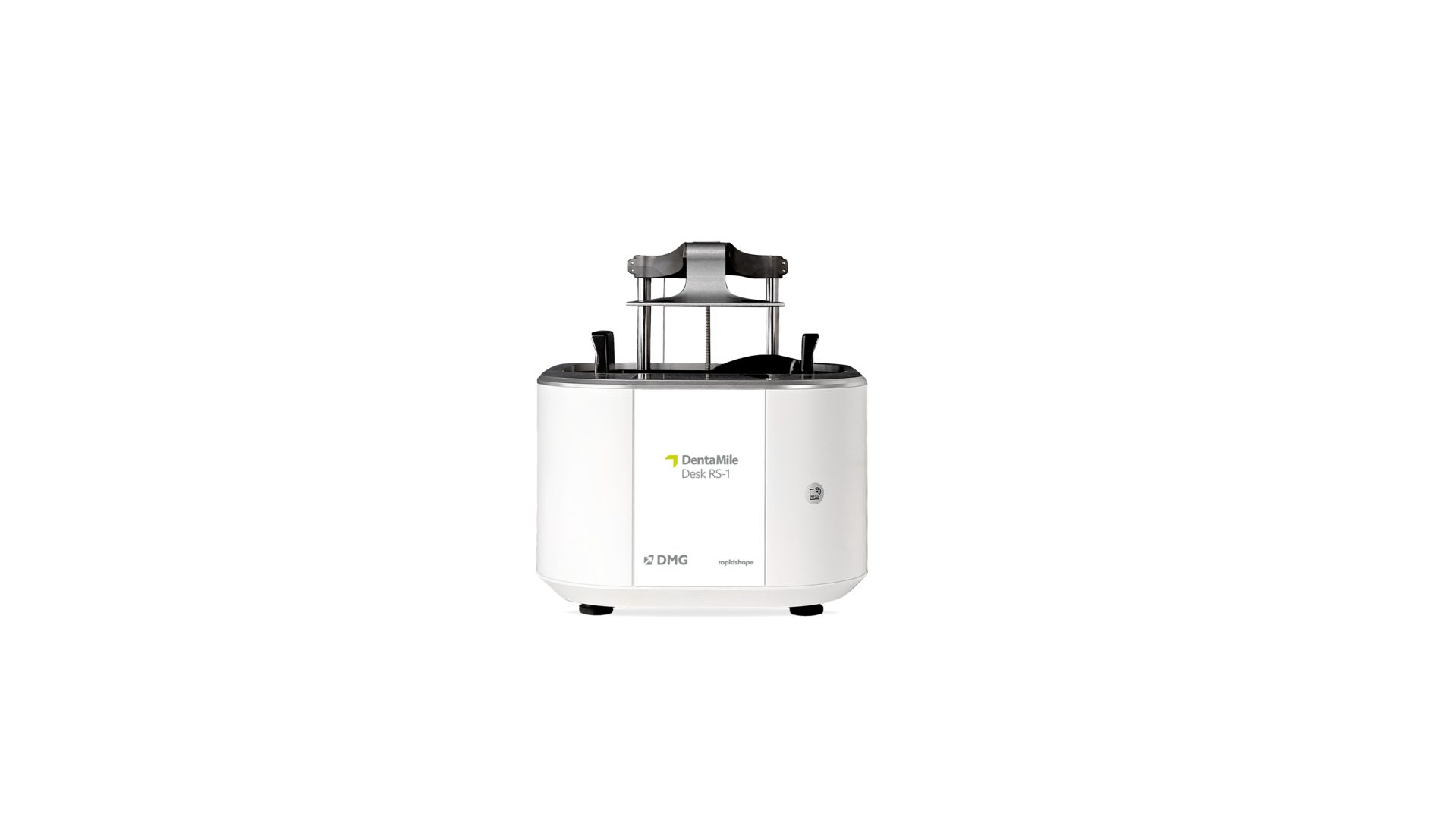

DentaMile Desk RS-1

The elegant and compact solution for dental 3D manufacturing

The DentaMile Desk RS-1 is your versatile and easy-to-use solution for precision 3D printing in your dental clinic. This compact desktop DLP 3D printing system is designed for ease of use and is ideal for use in medical technology. Thanks to innovative technologies such as Force Feedback and certified auto-calibration, the DentaMile Desk RS-1 delivers reliable print results with minimal effort. With an affordable entry-level price, it makes it possible for a broad range of service providers to access additive manufacturing and ensures a clean, efficient production environment.

+

The benefits of the DentaMile Desk RS-1:

Force Feedback technology: optimises the printing process by actively managing platform speed for reliable prints.
Certified auto-calibration: Ensures consistent light intensity and print quality.
RFID material identification: Monitors the compatibility of the material and its expiry date.
Compact design: For flexible placements.

Technical data

Build space	133 x 75 x 100 mm
Wavelength	385 nm
Max. workpiece height	90 mm
Resolution	Full HD, 69 µm pixel size;
Z resolution	25-150 µm
Connectivity	WLAN, LAN, USB
Dimensions (W/D/H):	320 x 375 x 300 mm (with closed lid), 320 x 375 x 391 mm (in print mode)
Weight	Approx. 9 kg

+

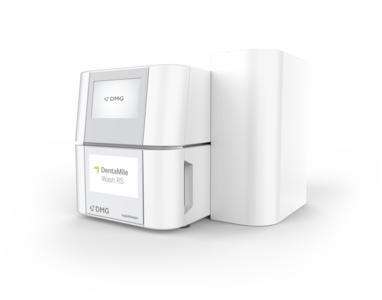

The benefits of the DentaMile Wash RS:

Fast and fully automatic cleaning
No contact with sticky resins and cleaning fluids
Certified workflows
Touch-display control
Computer-controlled programmes ensure the most effective use of cleaning fluids

Technical data

Size (W/D/H)	335 x 460 x 310 mm
Volume	130 x 75 x 60 mm
Working time	between 4-8 minutes, depending on the material
Cleaning agent	Isopropyl alcohol or methyl alcohol, depending on the material
Connections	WLAN/LAN
Weight	Approx. 8 kg

+

The benefits of the DentaMile Cure RS:

Fully automatic material curing programmes
Integrated 6-inch touch screen
Network connectivity
Easy calibration with ACCS sensor to ensure functionality
360° UV illumination for uniform curing
Stackable with DMG DentaMile Wash RS to reduce space requirement

Technical data

Size (W/D/H)	230 x 380 x 270 mm
Volume	130 x 75 x 60 mm
Working time	depends on the material
Connections	WLAN/LAN, USB
Weight	Approx. 12 kg

Download brochure

Software, hardware, materials: you can download a PDF of the complete DMG DentaMile digital workflow solution here.

View brochure

More information

Looking for more information on the digital possibilities that DentaMile offers?
Let’s talk about it.

Contact

Packaging

DMG DentaMile Desk RS-1

DMG DentaMile Desk RS-1

REF 170470

DMG DentaMile Wash RS	REF 170452
DMG DentaMile Cure RS	REF 170453
